Anchor and windlass

On this page we have gathered some information regarding the anchor and windlasses that were standard from the shipyard on a 370 or have been later on added to S/Y Älva.

(All information, product pictureas and tables by courtesy of each product manufacturer.

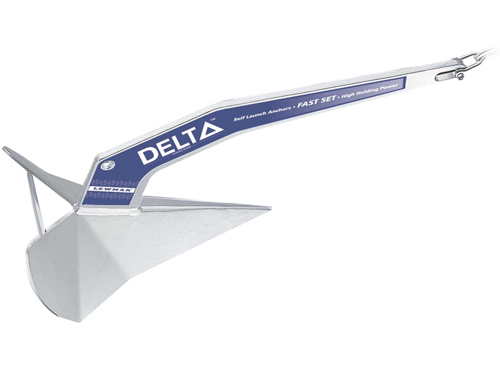

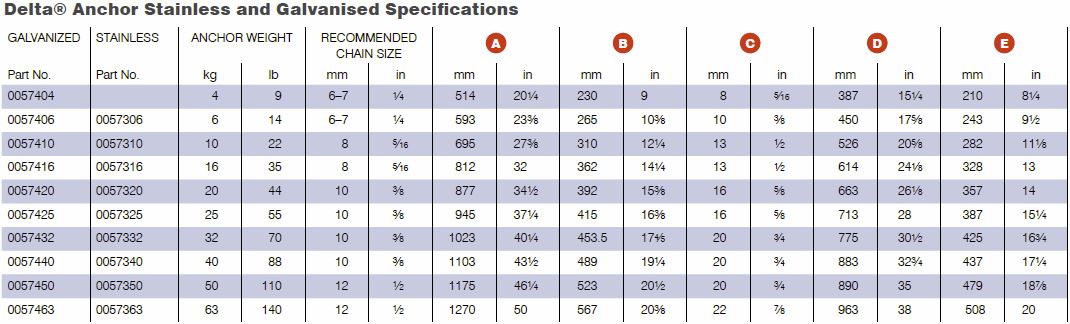

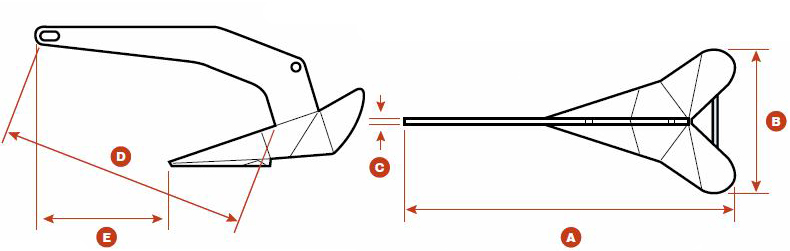

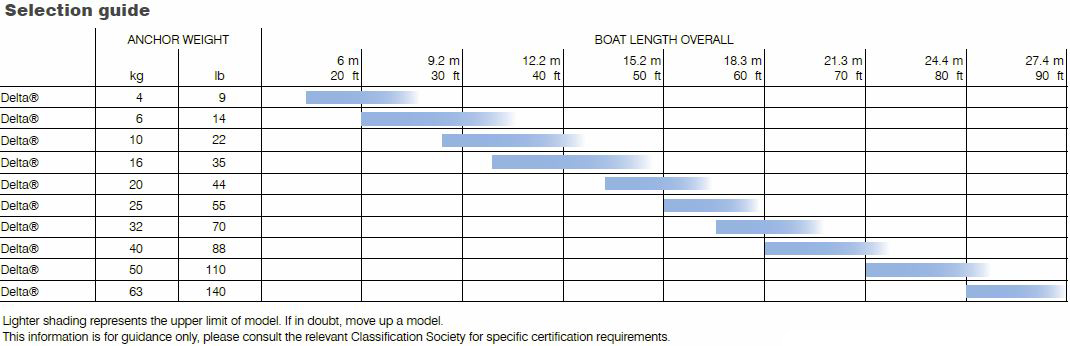

The standard bow anchor delivered by Hanse on the 370 is a Lewmar Delta 16 kg (35 lb).








Windlass in the bow

The standard bow windlass in the anchor box

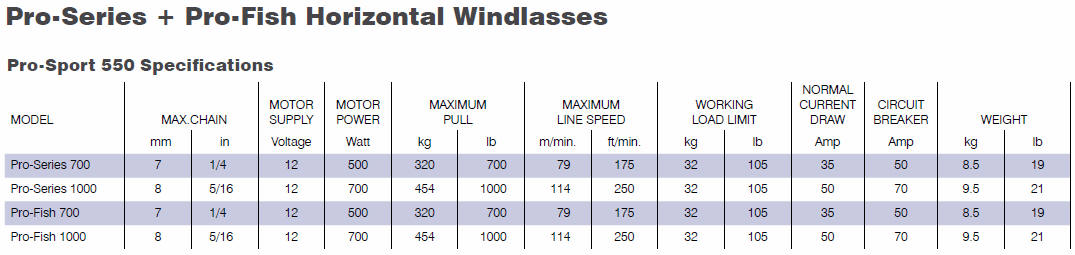

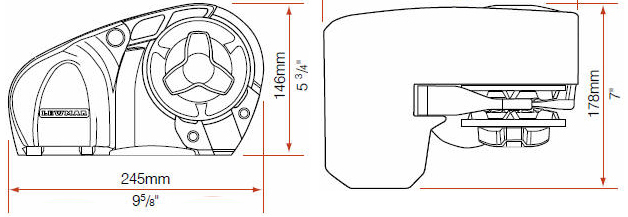

Pro-Series 1000 Windlass

Features

  • Powerful motor providing fast line speed
  • Manual emergency recovery equipped all you need is a common 1/2 socket wrench
  • Strong 100% 316 stainless steel, including control arm and stripper
  • Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
  • Convenient above-deck installation
  • 5-year warranty
  • For boats up to 12m (38ft)
  • Free Fall conversion kits
DIY ready kit including: Windlass, base gasket seal, fast mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch.




Windlass in the aft
The later added aft windlass

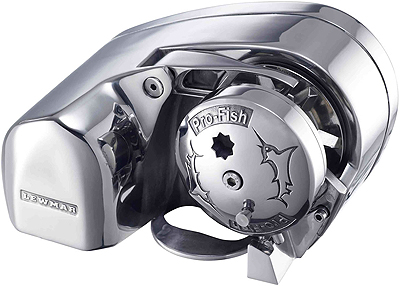

Lewmar Pro-Fish 1000 Windlass

Features

  • Automatic freefall
  • Powerful motor providing fast line speed
  • Manual emergency recovery equipped all you need is a common 1/2 socket wrench
  • Strong 100% 316 stainless steel, including control arm and stripper
  • Maximum pulling power: 454kg (1,000 lb)
  • Convenient above-deck installation
  • 5-year warranty
  • For boats up to 12m (38ft)

DIY ready kit including: Windlass, base gasket seal, fast mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch

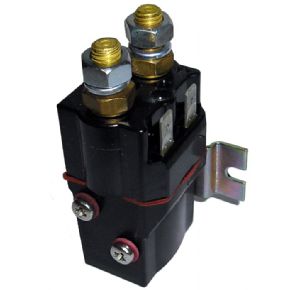

Dual direction solenoid (68000939)

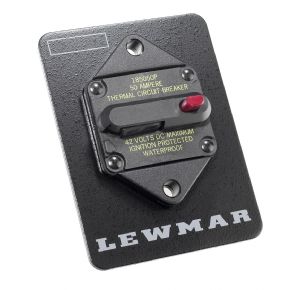

Circuit breaker

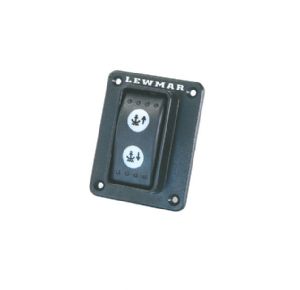

Rocker switch


The 3-Button Windlass Remote (68000967) Kit is  easily retrofitted to existing installations and include a replaceable battery. The fob float and is waterproof to IP67 (1 Meter deep). Using over one billion individual codes, our proprietry encryption scheme prevents false triggering from any other device or similar fob. Ther kit include a Receiver that supports up to eight remote key fobs (additional fobs sold separately).
  • Allows wireless remote operation (up/Down) of any solenoid switched windlass.
  • FCC & CE certified
  • Kit includes one wireless fob and one receiver


We have 75 m of the 14 mm rope plus 4 meters of stainless steel chain on Älva.

The secret of a good rope for the windlass is that the rope is heat set. This gives the rope a firmer structure and the "teeth" of the windlass gets a better grip as the rope is more compact thanks to the heat treatment. At least this is what Liros says.

Picture borrowed from Liros who owns all rights to the content.
