Improvements on Hanse 370e Cava
|
|
|
Nickname on MyHanse: Laro88dk Boat name: Cava Modell: Hanse 370e Location: Denmark Contact: Click here |
|
|
Text and pictures (C) Jes Ramsing 2026 Locking the shower door in place and integrated some hooks as well - 2 on each side. I have made the first in cheap PLA - used a higher fill rate (like 70%) to make it stronger. It is being tested during the summer. I will print a couple to hand out - price will be a handshake and a cold beer if available :-) Btw: I will do a smaller one with one hook when I get around for it :-) The 3D model is available here for free: https://cults3d.com/en/3d-model/tool/hanse-yachts-door-locker-thing-jesramsing
|
|
|
|
|
|

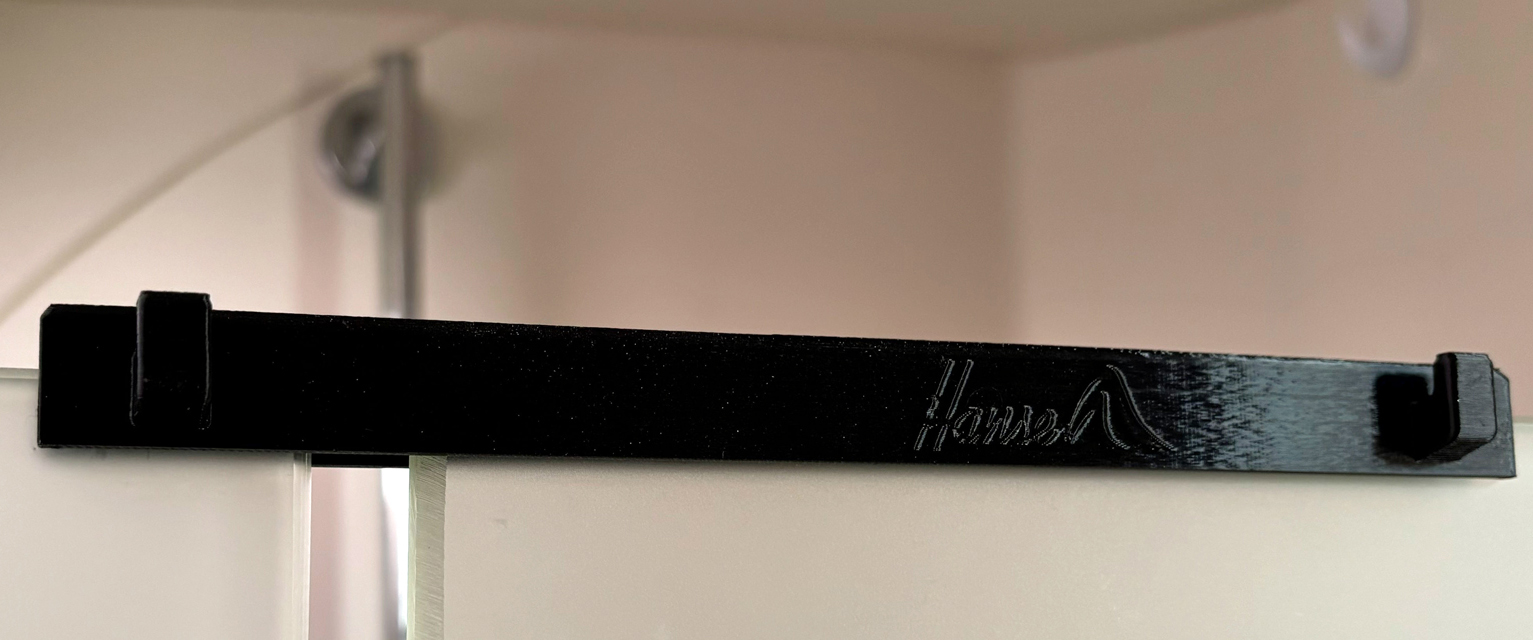

01. Lock in place. |
|

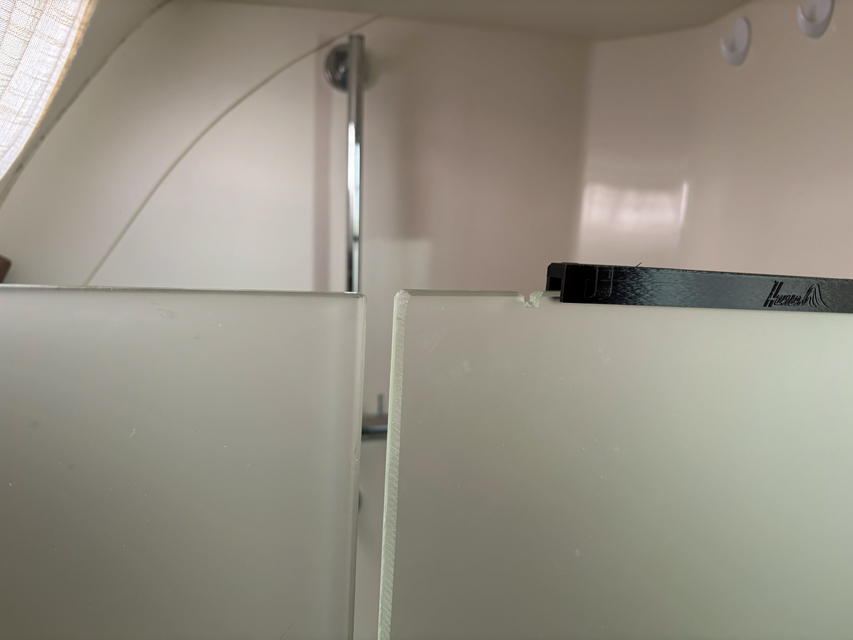

 02. Groove visible, made with a Dremel. |
|
|

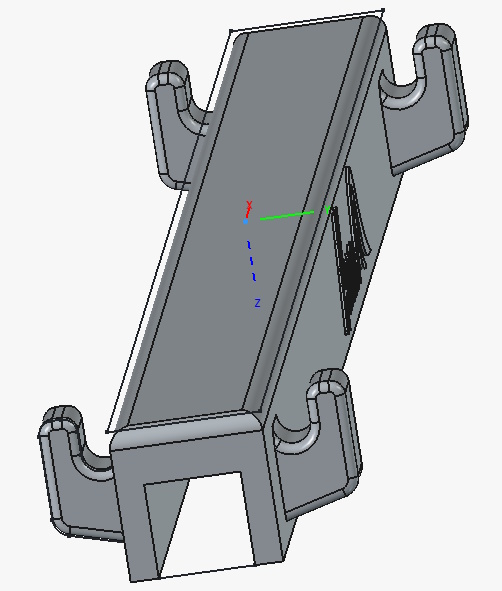

03. 3D model - hooks visible |

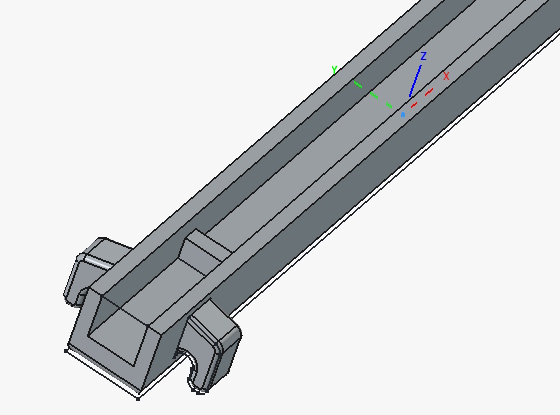

04. Notch visible underneath. The notch serves as the lock fixture, and it also keeps the lock in “open” position in the added groove.
|
