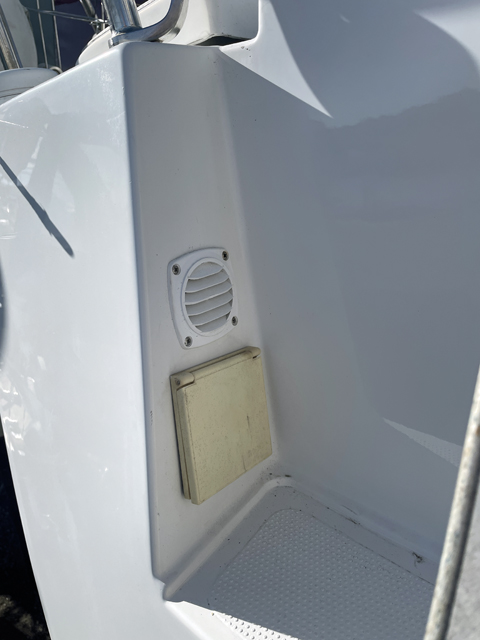

Task: Replace the shore power inlet with something nicer and more durable.

Challenge: Reducing the center hole and adapting the new hole pattern for the Ratio inlet.

I used a scrap piece of smoked Plexiglas (PMMA), which has excellent UV resistance, and the smoked color appears completely black against a solid background. (You use whatever material fits the job.) I cut the outer dimensions with a miter saw, then hand‑filed the edges and corners. I transferred the hole pattern from the old inlet.

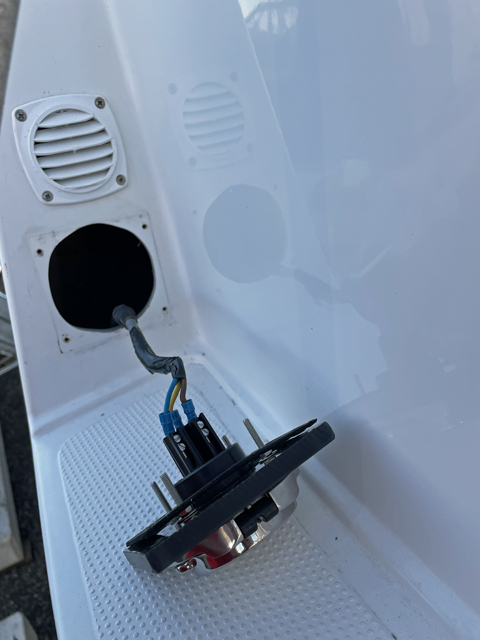

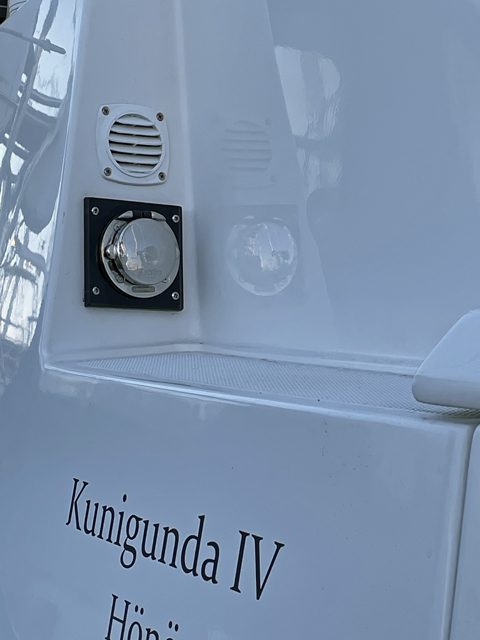

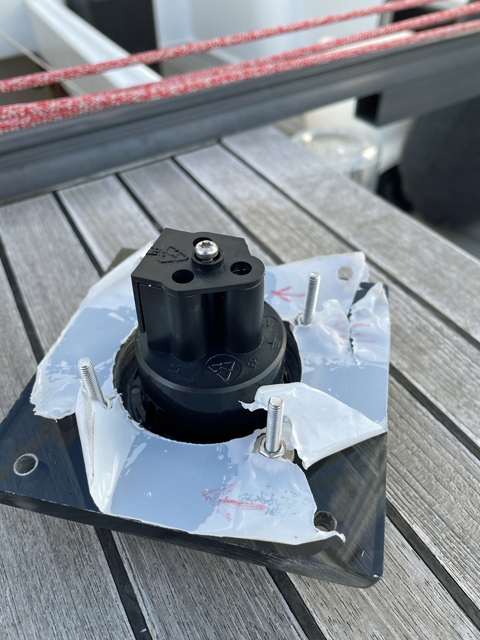

I enlarged the center hole (55 mm diameter according to the instructions) using a hole saw in a drill. I mounted the Ratio inlet onto the Plexiglas plate, then installed the whole assembly in the old opening. Be precise with the measurements and make sure the installation is watertight.

Text and pictures (C) Rikard Almsved 2026

01.

Material

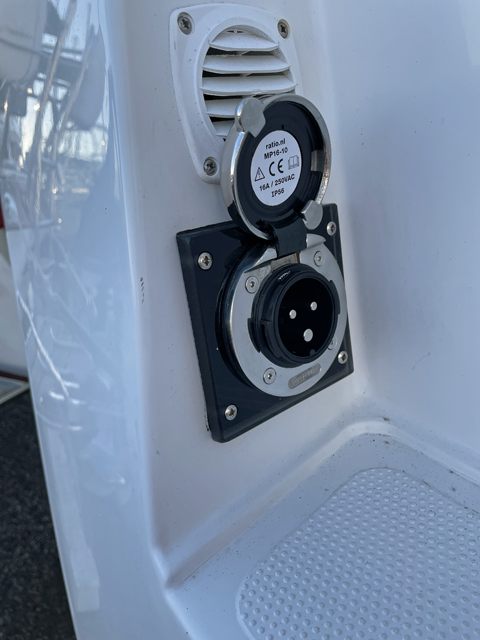

Ratio MP16-10 Shore Power Stainless Steel Inlet MP 16 (click here for link!).
Purchased at Moory.se for approx. 1200 SEK in 2026.
